Fish Farming cage net /High Quality HDPE Floating Cage

PRODUCTS CENTER

Product classification 



Fish Farming cage net /High Quality HDPE Floating Cage

Retail price

0.0

元

Market price

0.0

元

Number of views:

1000

Product serial number

Category

Quantity

-

+

Stock:

0

Back to list



1

Qualification Online Message

Product description

Parameters

other

Quick Details

Place of Origin:: Hunan, China

Brand Name:: Xinhai

Model Number:: Xinhai001

Material:: HDPE

funtion:: trawler

location:: deep sea

Application:: Sturgeon Farm

Type:: RAS Fish Farming System

Product name:: China Fiberglass Fish Farming Tanks

Size:: Customized Size

Application filed:: Marine

Customize Available:: Customer Make

Feature:: Tear-resisitance

Supply Ability

Supply Ability: 100000 Kilogram/Kilograms per Month

Packaging & Delivery

Packaging Details: Packed in PP woven bag

Port: Any port

Lead Time:

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	10	To be negotiated

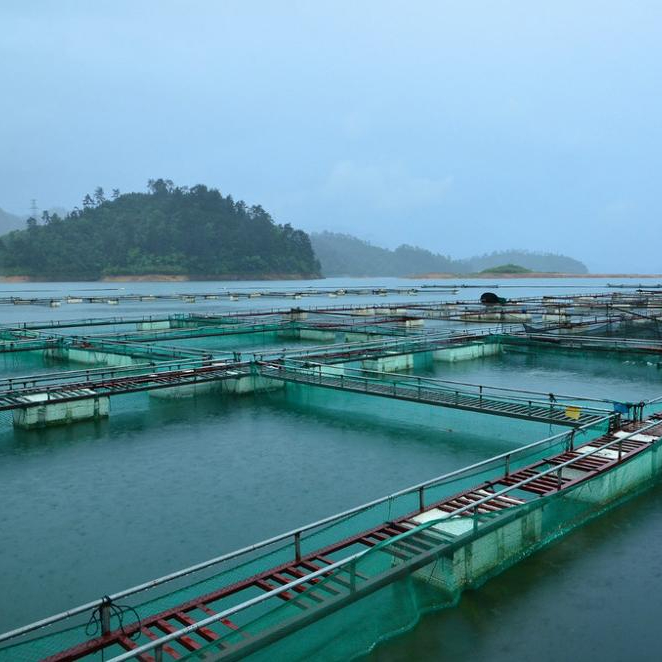

Fish Farming cage net /High Quality HDPE Floating Cage

Structure:

* Framework : Polyethelene Tube with reliable strength, elasticity, ductility.

* Fixed System : Timber Pile, Anchor Pile, Cement Concrete Pile, according to the geology condition of the cage location.

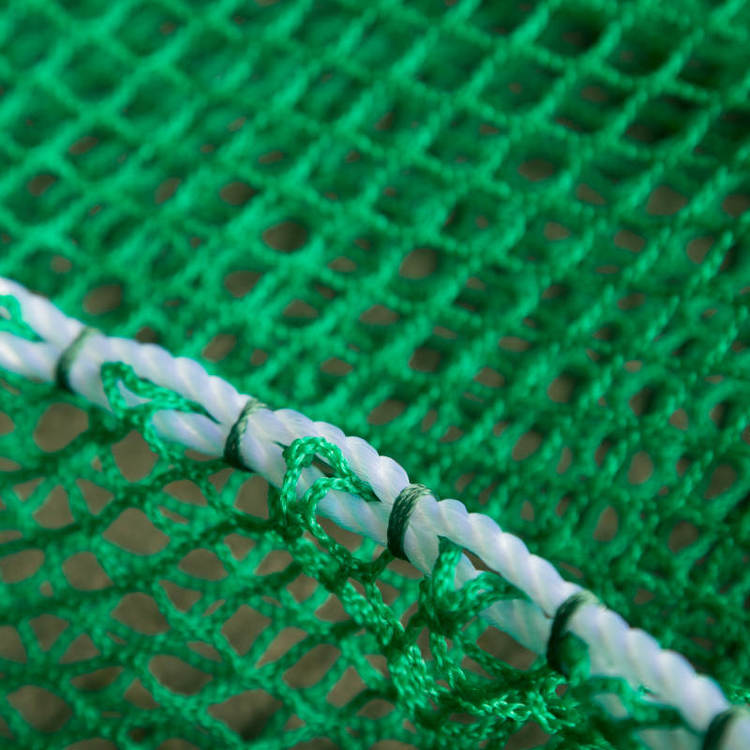

* Netting :use PE/ Polyester/ Nylon knotless nets, which have strong adhesion resistance and ageing resistance.

Common Specification:

Cage Type	Floating Pipe Size (mm)	Rail Pipe Size (mm)	Cage Body Spec. (m)
Square Cage	Φ200, Φ250	Φ110	5x5, 6x6, 9x9, 10x10
Floating Cage (Double Floating Pipes)	Φ250, Φ280, Φ315	Φ110	Circumference 40, 60, 80, 100
Floating Cage (Three Floating Pipes)	Φ250, Φ280, Φ315	Φ110	Circumference 60, 80, 100

Performance Parameter :

Cage Type	Wind Resistance	Billow Resistance	Current Resistance	Antifouling Validity	Installation Sea Area
Square Cage	8 Grade	7 Meters	< 1M / Sec.	6 Months	Inshore Bay
Floating Cage	11 Grade	7 Meters	< 1M / Sec.	6 Months	Water Depth 12-20M
Elevating Cage	12 Grade	7 Meters	< 1M / Sec.	6 Months	Water Depth 20-30M

Net cage type	Square or circular
Material	HDPE/ Nylon/polyester/UHMWHDPE(Dyneema)
Knot type	Knotted /Knotless
Weaving	Twisted/Raschel/braided
Twine type	Multifilament
Thickness/twine size	190D-500D/5ply-1200ply, φ0.3mm-φ12mm

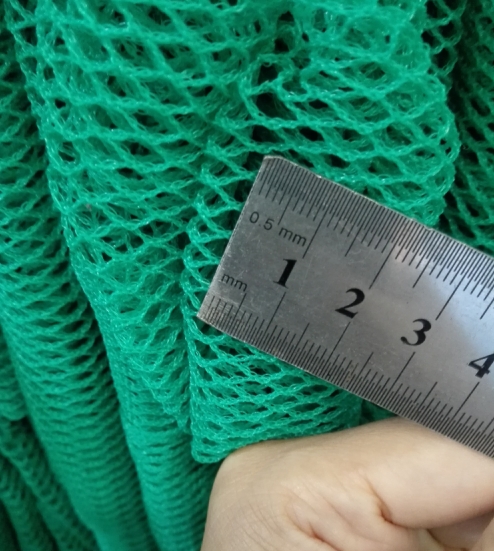

Mesh size	10mm-1000mm
Mesh type	Diamoned or square
Length×Width×Depth for square net cage Diameter×Depth for circular net cage	As request
Color	As request
Treatment	UV,resin,Coating, Painting
Packing	PE woven bag
Application	Trout,Salmon,ALMON,Sturgeon,tilapia,Catfish,Grouper,Cod,Sea bream,Etc.
